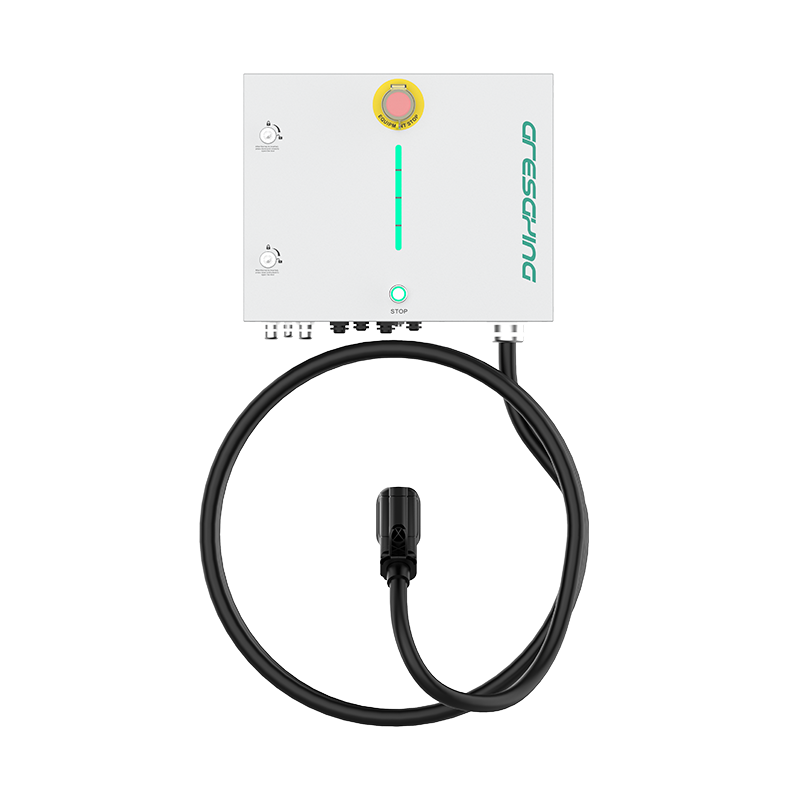

DTB 300 Depot Box
Compact Fleet Depot Charging Solution for Buses, Cars, HDVs and More
Compact, robust depot dispenser with wall/post / overhead mounting options, designed to work with distributed DC systems across all fleet charging scenarios.
Adaptable to Various Mounting Options for all Depot Charging Scenarios
• Flexible Configurations
–Network Connection: Ethernet
–Various Mounting Options: Wall, overhead, post to suit different charging scenarios
–1 x 480kW power cabinet supports up to 12 Depot Boxes for simultaneous charging
–Adjustable outputs (max. 300A & 300kW) with dynamic load management for optimizing site energy usage
–Flexible deployment with up to 100 m cabinet-to-dispenser distance
• Intelligent Control
–OCPP 1.6J compliant for seamless CSMS / CMS integration
–Dynamic load management to respect site limits and cut peak costs
–Sequential/rotational charging for efficient overnight operations
–ISO 15118 compliant with support for smart session features
–VDV 261 compliant enabling standardized e-bus preconditioning
–Autocharge supported and Plug & Charge ready
• Safe & Reliable
–Centralized power architecture reduces bay-side footprint
–Cleaner, safer lanes with structured cable routing and optional overhead layouts
–IP55 ingress protection for demanding outdoor / industrial environments
–Built for high utilization and simplified maintenance cycles
|
Model |
|
|
Model number |
LCTDG-300E-1 |
|
Rated power |
300kW (peak 400kW) |
|
Output Parameters |
|
|
DC output voltage range |
150VDC~1000VDC |
|
DC output current |
300A (peak 400A) |
|
User Interface & Control |
|
|
User authentification |
App, button, MAC autocharge |
|
Connectivity |
Ethernet |
|
Communication protocol |
OCPP 1.6J (upgradeable to OCPP 2.0.1) |
|
Mechanical Parameters |
|
|
Cable length |
10m |
|
Dimension (WxDxH) |
500m×200m×400m |
|
Weight |
≤55kg |
|
IP rating |
IP55 |
|
Environmental Data |
|
|
Storage temperature |
-40~70°C |
|
Operating temperature |
-30~50°C |
|
Operating humidity |
5%~95% RH (no condensation) |
|
Altitude |
≤2000m |
|
Cooling method |
Natural cooling |
|
Optional |
Cable balancer, |
|
Certificate |
CE,CB, UKCA, RCM, RoHS 2.0, REACH |
